Installation [12/2019 - 11/2023]: Procedure

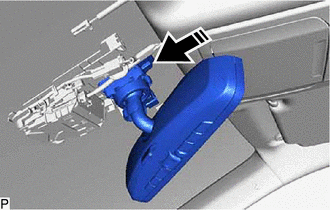

1. Slide and temporarily install the inner rear view mirror assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

2. Using a T20 "TORX" socket wrench, install the inner rear view mirror assembly with the screw.

   Torque: 1.5 N.m (15 kgf/cm, 13 in.lbf)

3. Engage the clamp.
4. Connect the 2 connectors.

Refer to PROCEDURE - Step 3 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 3 [09/2020 - 11/2023]

Refer to PROCEDURE - Step 4 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 4 [09/2020 - 11/2023]
