Parts Location [12/2019 - 10/2022]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

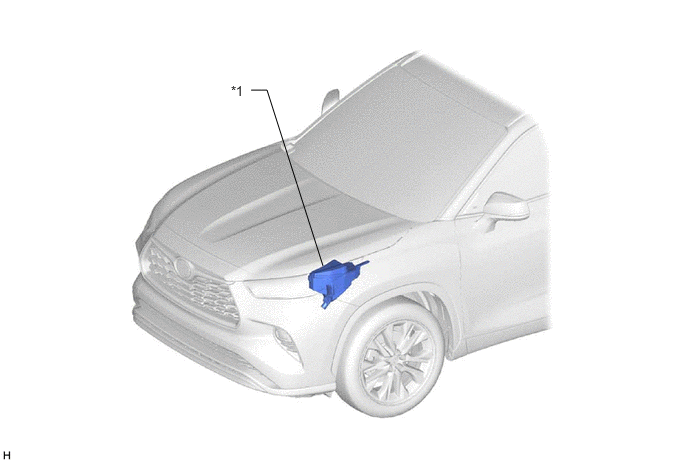

*1

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - RADIO NO. 2 FUSE (w/o Stop and Start System)

-

-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

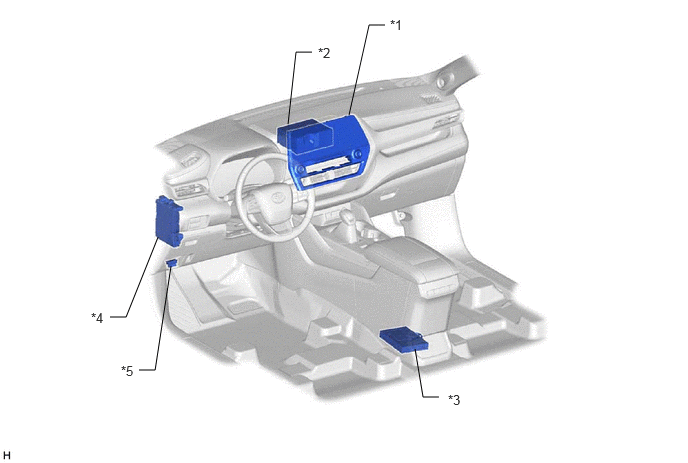

*1	MULTI-DISPLAY ASSEMBLY	*2	RADIO RECEIVER ASSEMBLY
*3	INTEGRATION CONTROL SUB-ASSEMBLY	*4	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE (w/o Stop and Start System) - ECU-IG1 NO. 4 FUSE (w/o Stop and Start System) - ECU-ACC FUSE (w/o Stop and Start System) - PANEL FUSE (w/o Stop and Start System)
*5	DLC3	-	-
