TOYOTA Multi Operation Touch System - Diagnostic Codes & Circuit Tests
>>
TOYOTA Multi Operation Touch System
>>
DTC B15D6: Display Disconnected (Multi Display) [12/2019 - 10/2022]
>>

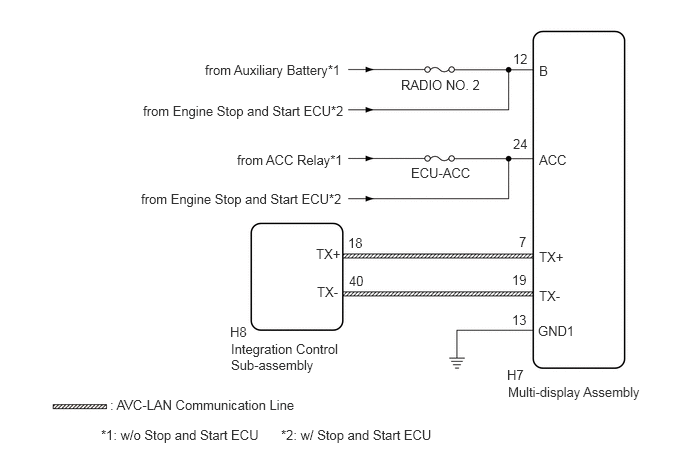

Wiring Diagram
DTC B15D6: Display Disconnected (Multi Display) [12/2019 - 10/2022]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
