Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Navigation System (12.3 Inch Display) Symptom Tests & Circuit Tests >> NAVIGATION SYSTEM (for 12.3 Inch Display) >> AVC-LAN Circuit [12/2019 - 10/2022] >> Wiring Diagram

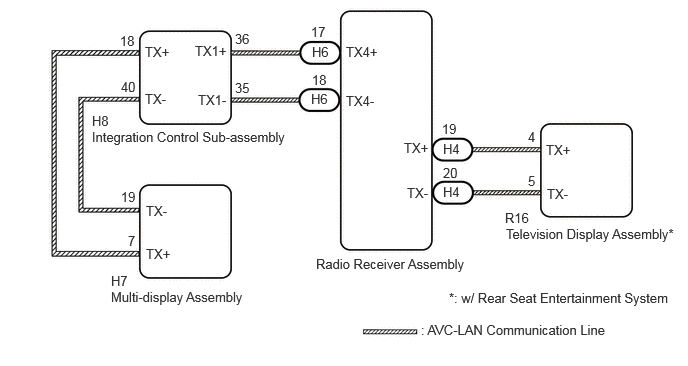

AVC-LAN Circuit [12/2019 - 10/2022]: Wiring Diagram

GTY985475

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
