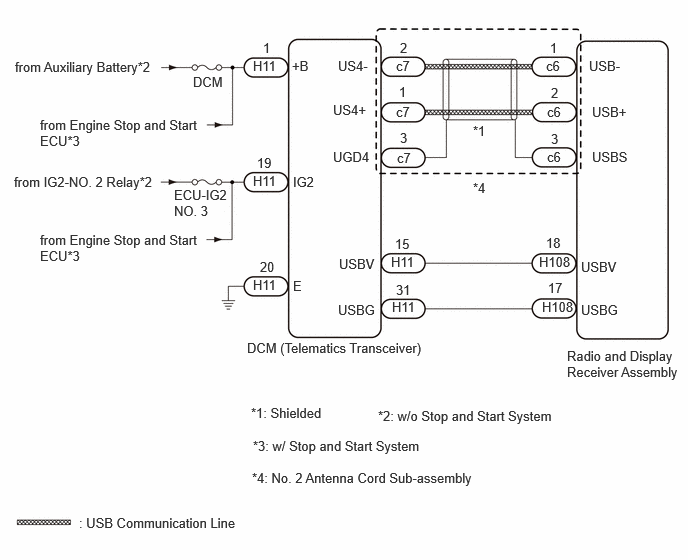

DTC B15DB-87: Telematics Transceiver Missing Message [10/2022 - 11/2023]: Wiring Diagram

GTY1179087

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
