Cursor or Map Rotates when Vehicle Stopped [12/2019 - 10/2022]: Procedure

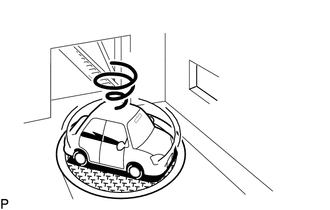

1. Check with the customer if the vehicle has been turned by a turntable.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   Vehicle has not been turned by a turntable.

   HINT:

   If the vehicle is turned on a turntable with the ignition switch ON, the system may store the angular velocity. As a result, the vehicle position cursor may deviate. In this case, the vehicle position cursor will return to normal by turning the ignition switch off and back to ON again with the vehicle completely stopped.

   Result

   Proceed to
   OK
   NG

Result:

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [12/2019 - 10/2022]

Result:

NG

TURN IGNITION SWITCH TO ON WHEN VEHICLE IS COMPLETELY STOPPED
