Speaker Circuit [12/2019 - 10/2022]: Wiring Diagram

w/o Stereo Component Amplifier Assembly

GTY946610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Stereo Component Amplifier Assembly

GTY946636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

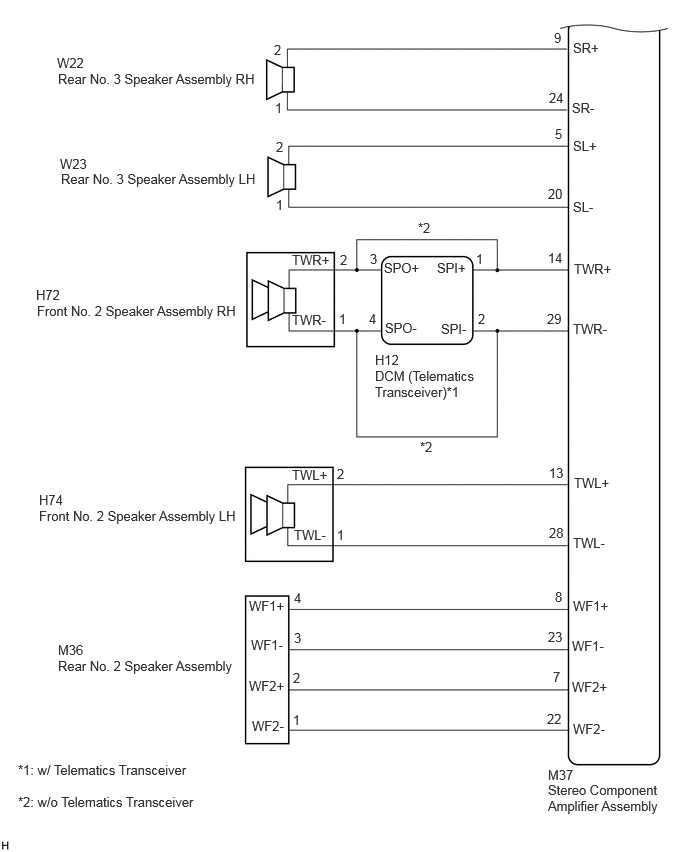

GTY866227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
