NAVIGATION SYSTEM (for 8 Inch Display)
>>

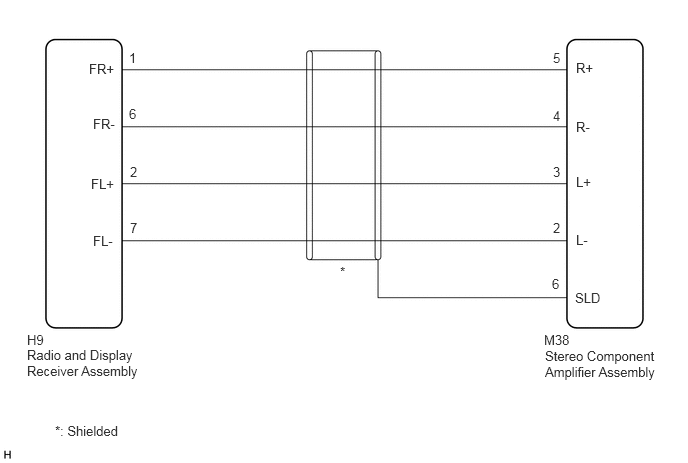

Sound Signal Circuit between Radio Receiver and Stereo Component Amplifier [12/2019 - 10/2022]
>>
Wiring Diagram
Sound Signal Circuit between Radio Receiver and Stereo Component Amplifier [12/2019 - 10/2022]: Wiring Diagram
