Data Signal Circuit between Radio Receiver and Stereo Jack Adapter [12/2019 - 10/2022]: Procedure

1. Disconnect the H100 radio and display receiver assembly connector.
2. Disconnect the H15 No. 1 stereo jack adapter assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

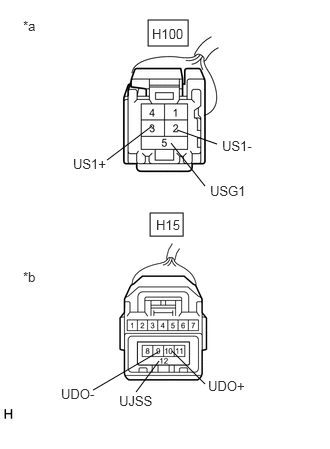

   *a	Front view of wire harness connector (to Radio and Display Receiver Assembly)
   *b	Front view of wire harness connector (to No. 1 Stereo Jack Adapter Assembly)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H100-2 (US1-) - H15-9 (UDO-)	Always	Below 1 Ω
   H100-3 (US1+) - H15-10 (UDO+)	Always	Below 1 Ω
   H100-5 (USG1) - H15-12 (UJSS)	Always	Below 1 Ω
   H100-2 (US1-) or H15-9 (UDO-) - Body ground	Always	10 kΩ or higher
   H100-3 (US1+) or H15-10 (UDO+) - Body ground	Always	10 kΩ or higher
   H100-5 (USG1) or H15-12 (UJSS) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [12/2019 - 10/2022]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
