Microphone Circuit [12/2019 - 10/2022]: Wiring Diagram

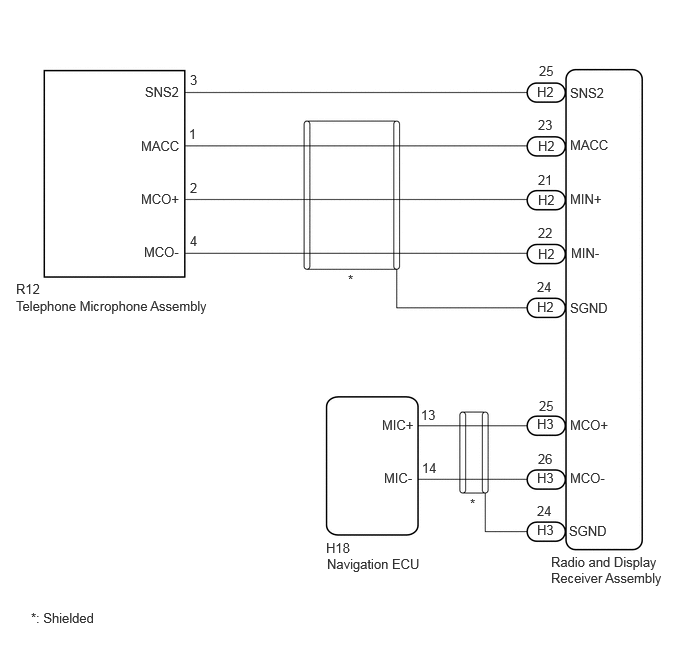

w/o Telematics Transceiver

GTY905067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

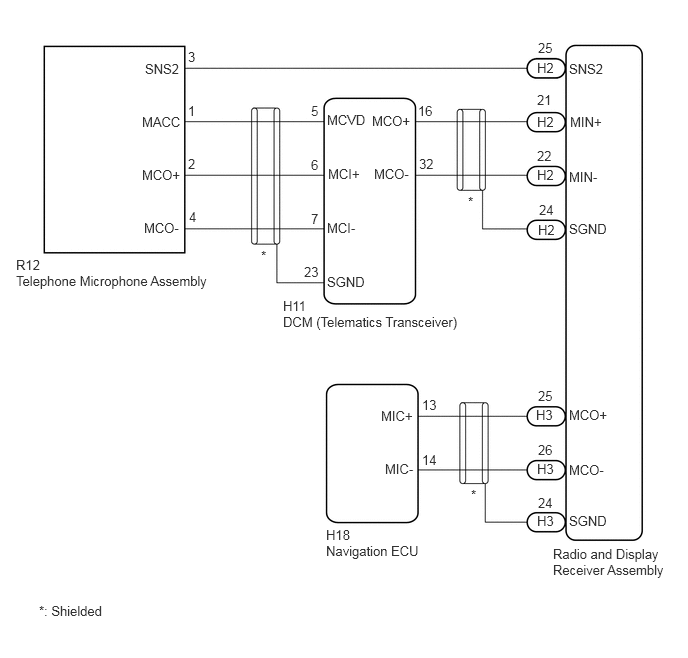

w/ Telematics Transceiver

GTY913474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
