Parts Location [12/2019 - 11/2023]: Illustration
WARNING: This page is about a different variant/trim than selected.

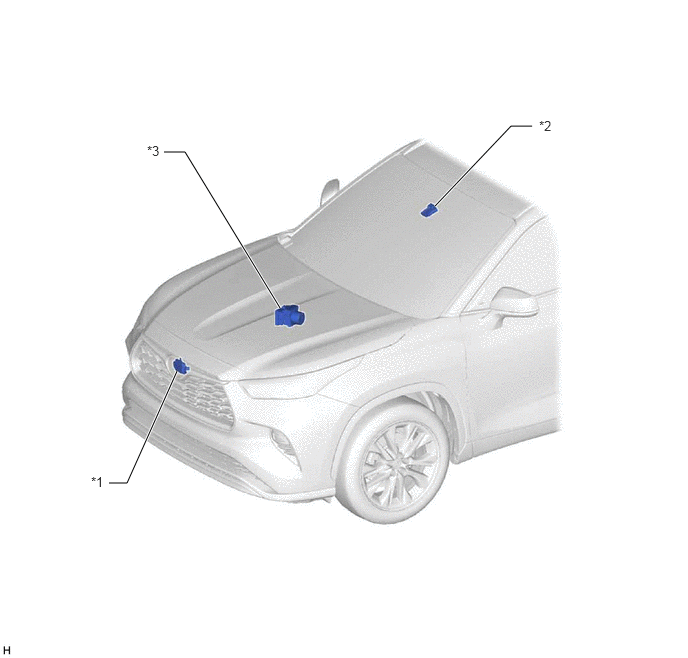

| *1 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *2 | FORWARD RECOGNITION CAMERA |
| *3 | NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | - | - |

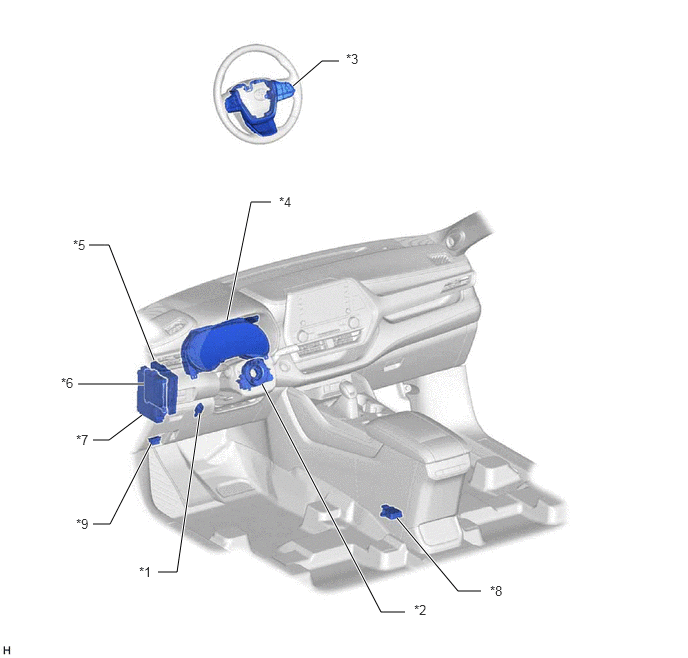

| *1 | STOP LIGHT SWITCH ASSEMBLY | *2 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY - SPIRAL CABLE SUB-ASSEMBLY - STEERING SENSOR |
| *3 | STEERING PAD SWITCH ASSEMBLY (CRUISE CONTROL SWITCH) - VEHICLE-TO-VEHICLE DISTANCE CONTROL SWITCH - CRUISE CONTROL MAIN SWITCH - -SET SWITCH - +RES SWITCH - CANCEL SWITCH |
*4 | COMBINATION METER ASSEMBLY |
| *5 | HYBRID VEHICLE CONTROL ECU | *6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - STOP FUSE - ECU-IG1 NO. 4 FUSE - ECU-IG2 NO. 3 FUSE |
*8 | YAW RATE SENSOR |
| *9 | DLC3 | - | - |
