System Diagram [12/2019 - 11/2023]

WARNING: This page is about a different variant/trim than selected.

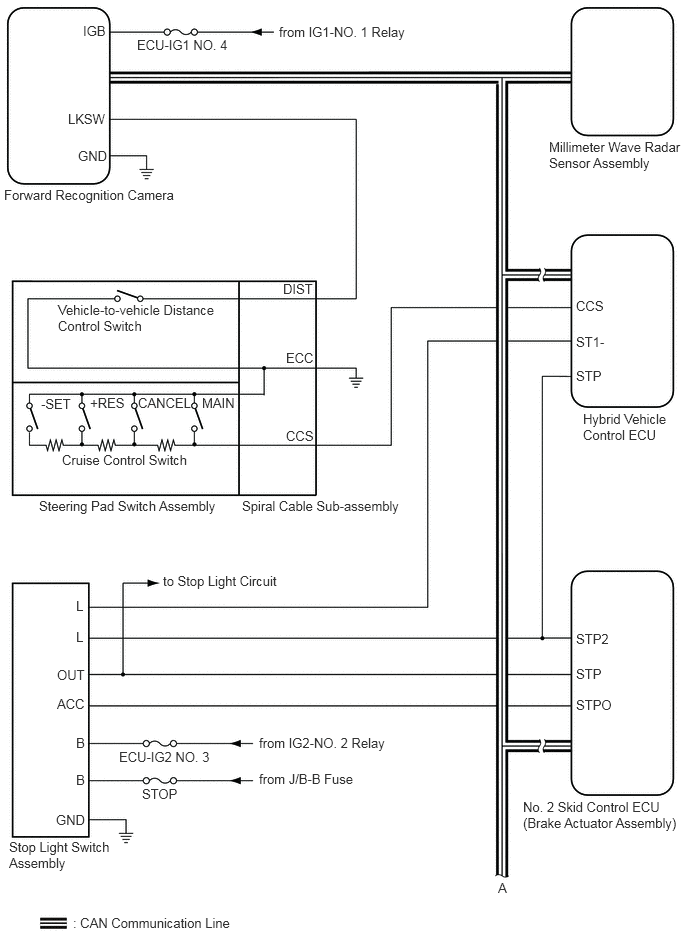

GTY848823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY921499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. LOCAL BUS
    GTY854337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
