System Diagram [11/2023 - ]

WARNING: This page is about a different variant/trim than selected.

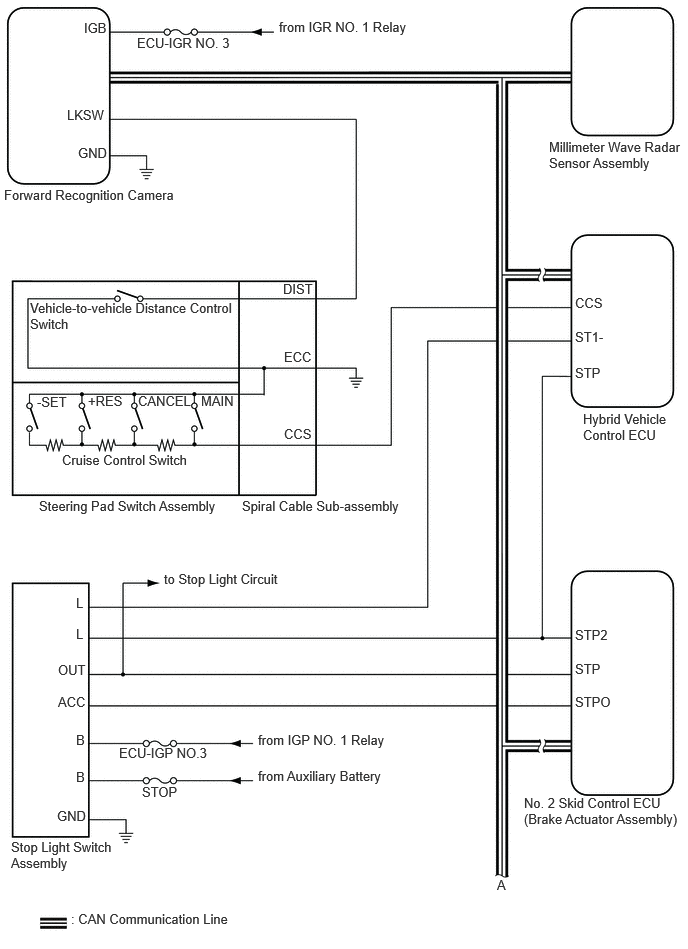

GTY1180678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY1180856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. LOCAL BUS
    GTY854337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
