Section 41 (Dynamic Radar Cruise Control System (HV) - Diagnostic Codes & Circuit Tests)
>>
DYNAMIC RADAR CRUISE CONTROL SYSTEM (for HV Model)
>>
Steering Pad Switch Circuit [12/2019 - 11/2023]
>>
Wiring Diagram
Steering Pad Switch Circuit [12/2019 - 11/2023]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

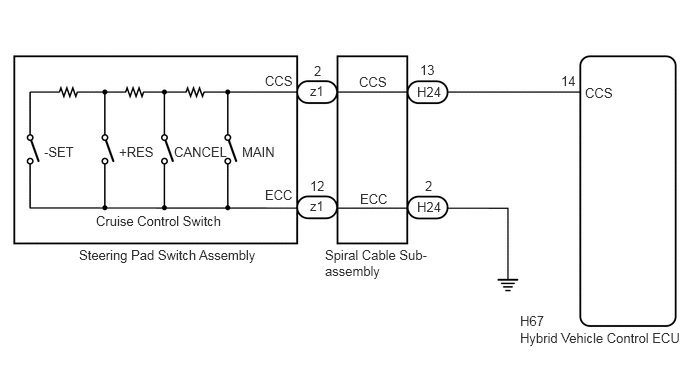

Fig 1: Steering Pad Switch Circuit [12/2019 - 11/2023]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
