Steering Pad Switch Circuit [11/2023 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

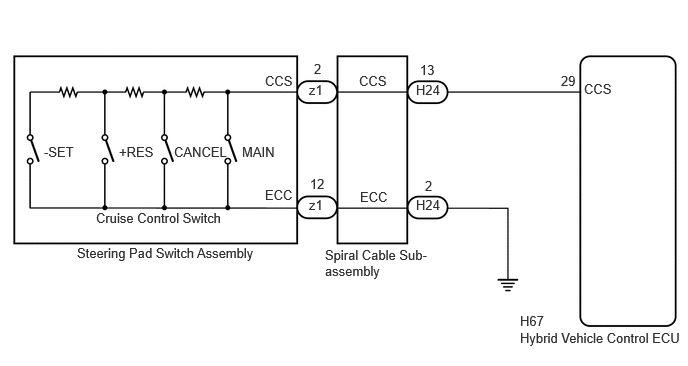

Fig 1: Steering Pad Switch Circuit [11/2023 - ]
GTY1180983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
