Section 61 (Hybrid Control System (2WD) - Diagnostic Codes (7 Of 7) & Circuit Tests)
>>
HYBRID CONTROL SYSTEM (for 2WD)
>>
Drive Mode Select Switch Circuit [12/2019 - 11/2023]
>>

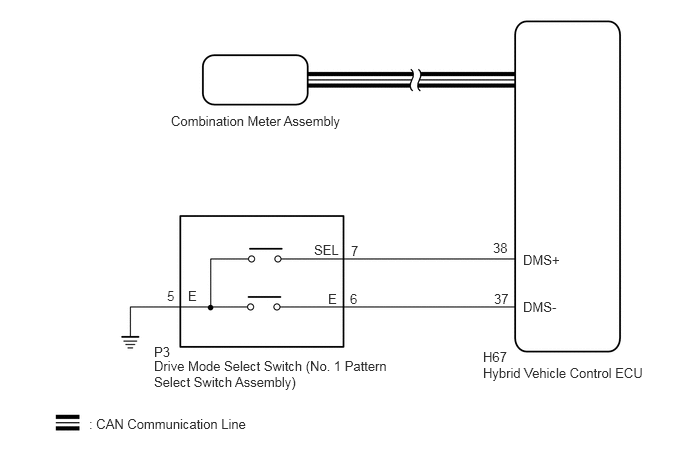

Wiring Diagram
Drive Mode Select Switch Circuit [12/2019 - 11/2023]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
