Cooling Fan Circuit [12/2019 - 11/2023]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

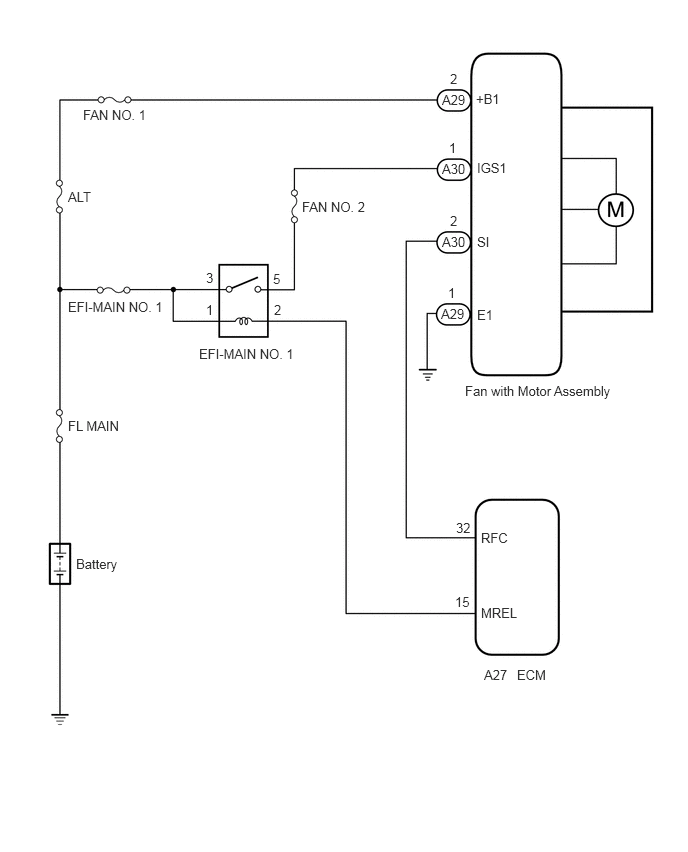

Fig 1: Cooling Fan Circuit [12/2019 - 11/2023]
GTY866257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
