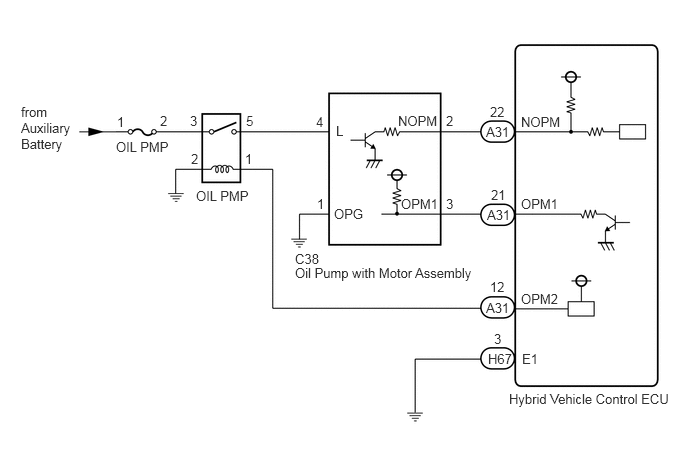

DTC P2600-31: Motor/Generator Coolant Pump "A" Control Circuit No Signal [12/2019 - 11/2023]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY913562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
