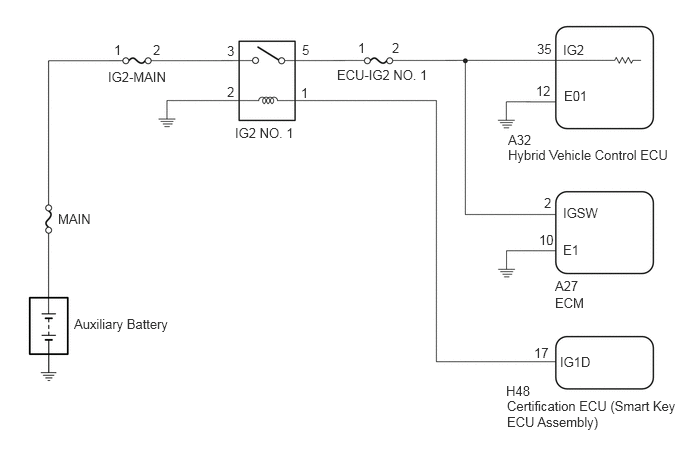

DTC P2530-12: IG2 Signal Circuit Short to Auxiliary Battery [12/2019 - 11/2023]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY920495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
