Section 60 (Hybrid Control System (AWD) - Circuit Tests (2 Of 2))
>>
HYBRID CONTROL SYSTEM (for AWD)
>>
Cooling System [12/2019 - 10/2021]
>>

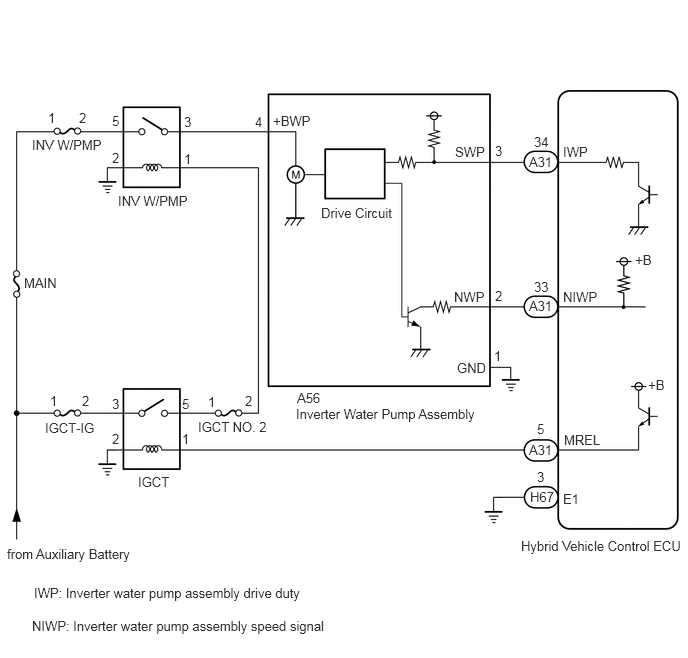

Wiring Diagram
Cooling System [12/2019 - 10/2021]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
