Components [12/2019 - ]
WARNING: This page is about a different variant/trim than selected.

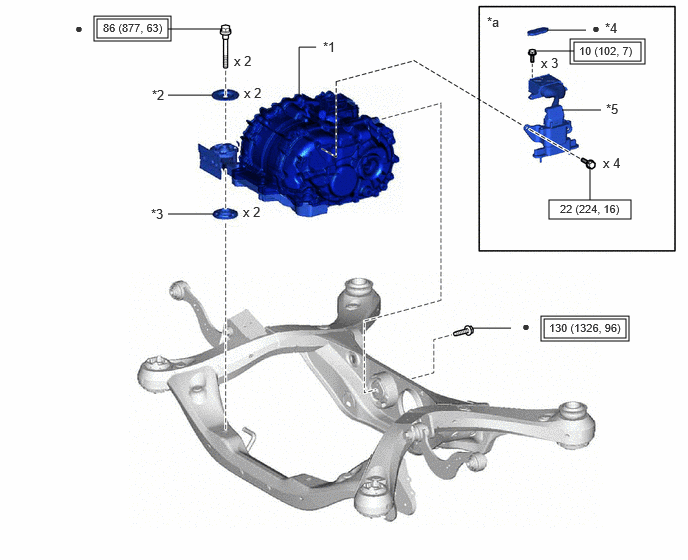

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY | *2 | UPPER DIFFERENTIAL MOUNT STOPPER |
| *3 | LOWER DIFFERENTIAL MOUNT STOPPER | *4 | MOTOR CABLE TERMINAL CAP |
| *5 | REAR TRACTION MOTOR CABLE | - | - |
| *a | Unnecessary to remove the rear traction motor cable unless inspection or replacement. | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |

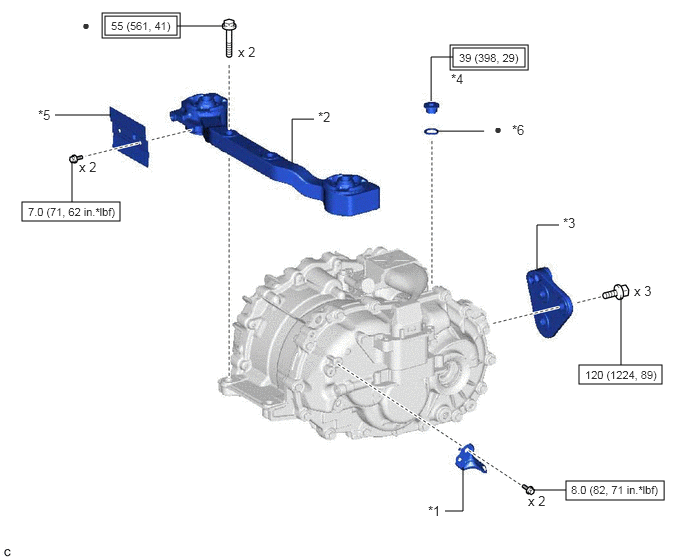

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | WIRE HARNESS CLAMP BRACKET | *2 | FRONT DIFFERENTIAL SUPPORT ASSEMBLY |
| *3 | DIFFERENTIAL SUPPORT | *4 | REAR TRACTION MOTOR FILLER PLUG |
| *5 | DIFFERENTIAL SUPPORT PROTECTOR | *6 | GASKET |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| • | Non-reusable part | - | - |
