Components [12/2019 - ]

WARNING: This page is about a different variant/trim than selected.

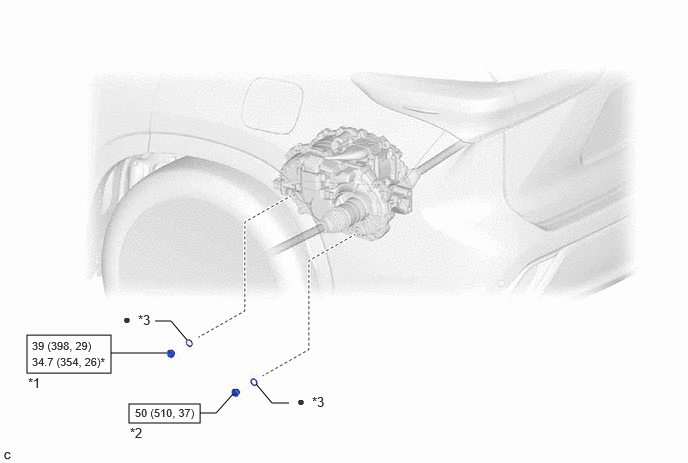

Fig 1: Hybrid Transaxle Fluid Replacement Components With Torque Specifications
GTY1116043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FILLER PLUG *2 DRAIN PLUG
*3 GASKET - -
N.m (kgf/cm, ft.lbf): Specified torque * For use with a union nut wrench
• Non-reusable part - -
