Components [12/2019 - ]

WARNING: This page is about a different variant/trim than selected.

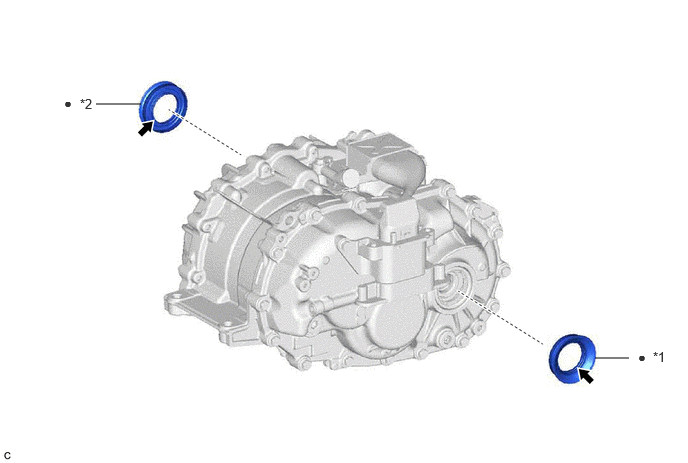

Fig 1: Hybrid Transaxle Side Gear Oil Seal Replacement Components
GTY942777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 REAR DRIVE SHAFT OIL SEAL LH *2 REAR DRIVE SHAFT OIL SEAL RH
• Non-reusable part MP grease
