Blind Spot Monitor System - Diagnostic Codes & Symptom Tests
>>
Blind Spot Monitor System
>>
Power Source Circuit [12/2019 - 11/2023]
>>
Wiring Diagram
Power Source Circuit [12/2019 - 11/2023]: Wiring Diagram

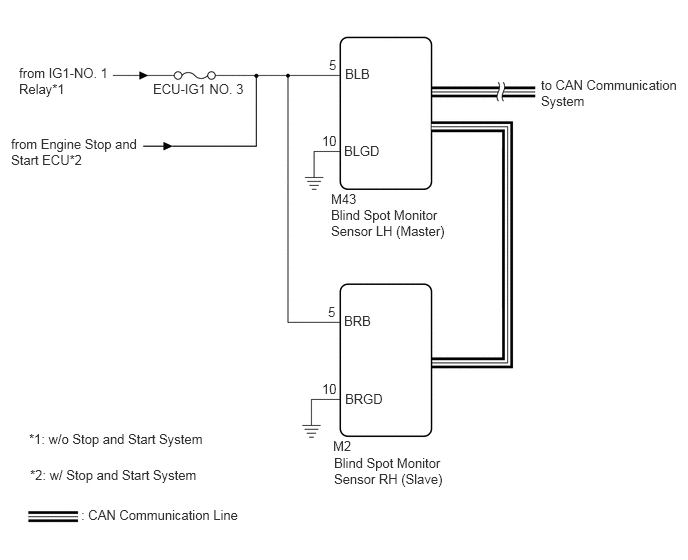

Fig 1: Power Source Circuit [12/2019 - 11/2023]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
