DTC B143B-7F: Air Inlet Damper Control Servo Motor Actuator Stuck Off [11/2023 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

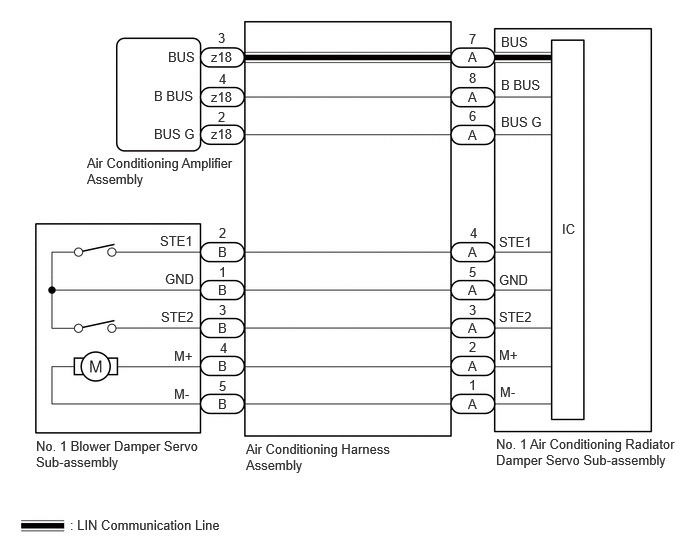

GTY1178898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
