Components [12/2019 - ]

WARNING: This page is about a different variant/trim than selected.

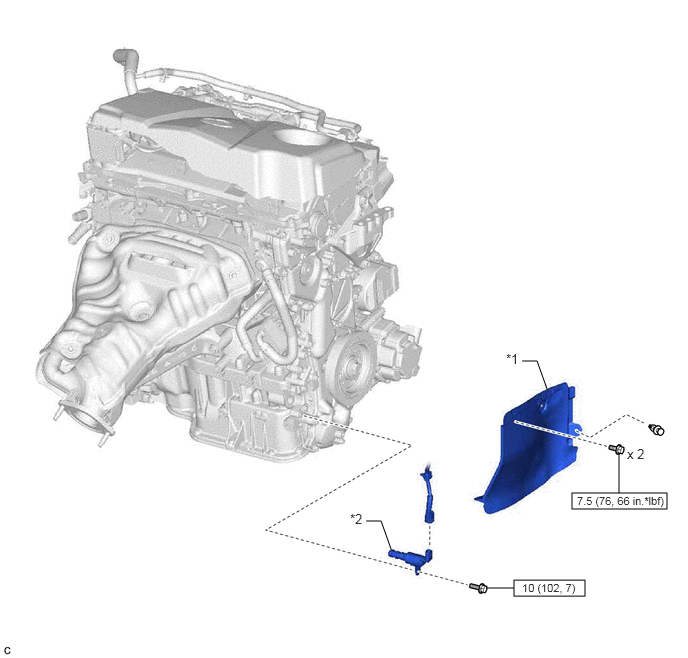

Fig 1: Oil Pressure Switching Valve Replacement Components With Torque Specifications
GTY896434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT FENDER APRON SEAL RH *2 OIL PRESSURE CONTROL VALVE ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque - -
