Components [12/2019 - ]
WARNING: This page is about a different variant/trim than selected.

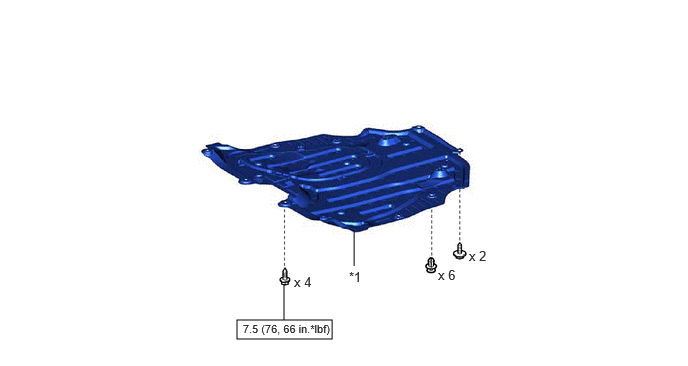

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 2 ENGINE UNDER COVER ASSEMBLY | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

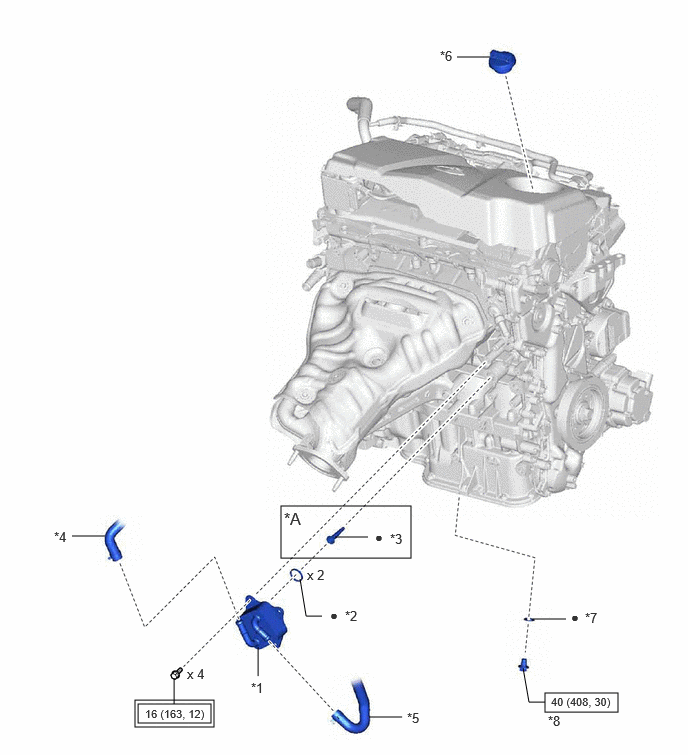

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Filter | - | - |
| *1 | OIL COOLER ASSEMBLY | *2 | OIL COOLER GASKET |
| *3 | OIL CONTROL VALVE FILTER | *4 | NO. 1 WATER BY-PASS HOSE |
| *5 | NO. 2 WATER BY-PASS HOSE | *6 | OIL FILLER CAP SUB-ASSEMBLY |
| *7 | GASKET | *8 | OIL PAN DRAIN PLUG |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| • | Non-reusable part | - | - |
