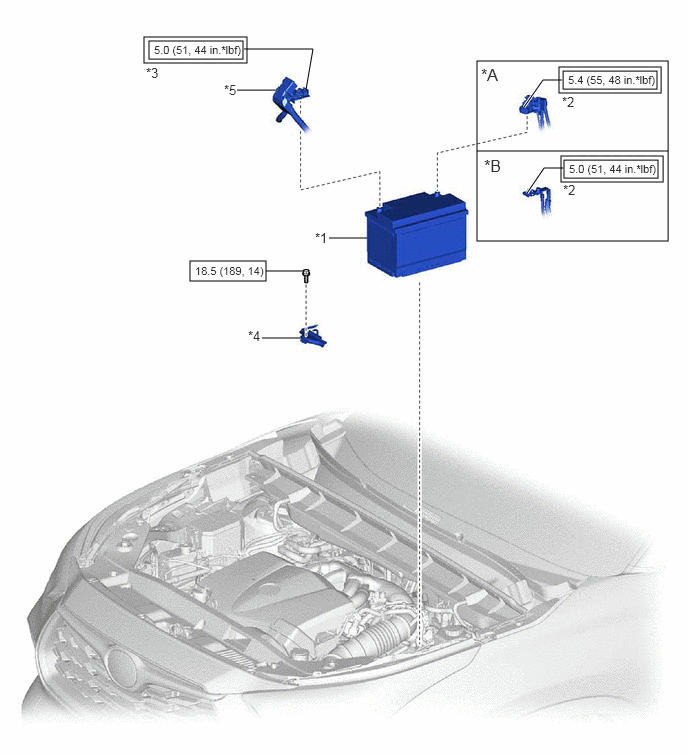

Components [12/2019 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Stop and Start System | *B | w/o Stop and Start System |
| *1 | BATTERY | *2 | NEGATIVE BATTERY TERMINAL |
| *3 | POSITIVE BATTERY TERMINAL | *4 | NO. 2 BATTERY CLAMP |
| *5 | BATTERY TERMINAL CAP | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
