Components [12/2019 - 10/2022]

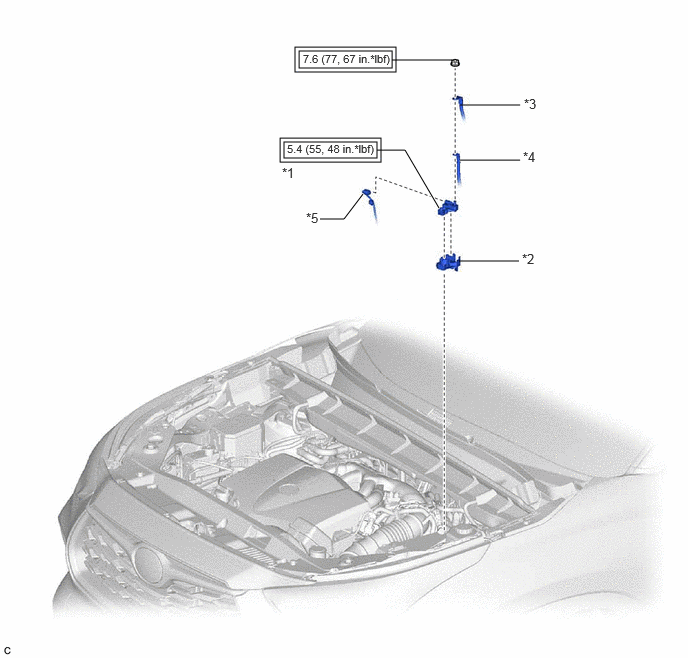

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BATTERY STATE SENSOR ASSEMBLY | *2 | BATTERY CURRENT SENSOR HOLDER |
| *3 | ENGINE WIRE | *4 | EARTH WIRE |
| *5 | ENGINE ROOM MAIN WIRE | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
