Engine Lubrication System (2GR-FKS) - Service Information
>>
Oil Pressure Switch
>>
Components [12/2019 - 10/2022]
Components [12/2019 - 10/2022]

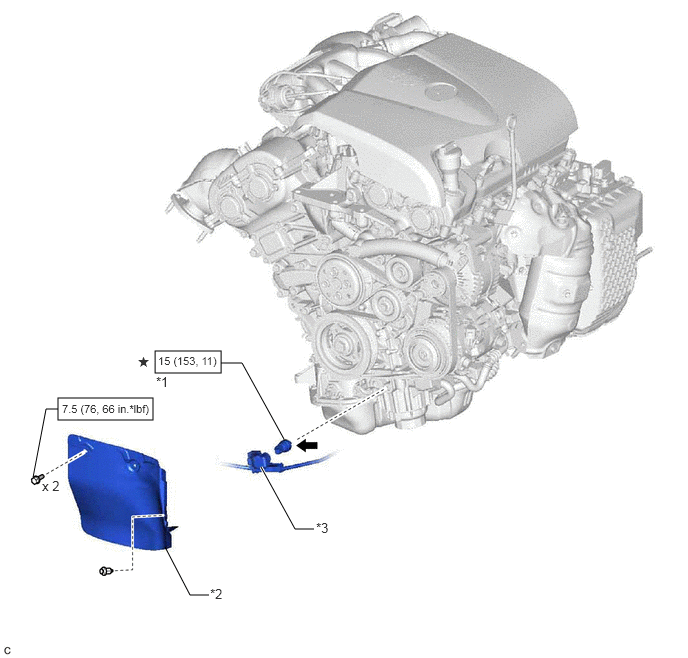

Fig 1: Oil Pressure Switch Replacement Components With Torque Specifications [12/2019 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
ENGINE OIL PRESSURE SWITCH ASSEMBLY
*2
FRONT FENDER APRON SEAL RH
*3
WIRE HARNESS PROTECTOR
-
-
N.m (kgf/cm, ft.lbf): Specified torque
Adhesive 1344
*
Precoated part
-
-
