Components [12/2019 - 10/2022]
Fig 1: Oil Pan And Oil Level Sensor Replacement Components With Torque Specifications [12/2019 - 10/2022] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR ENGINE UNDER COVER RH | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

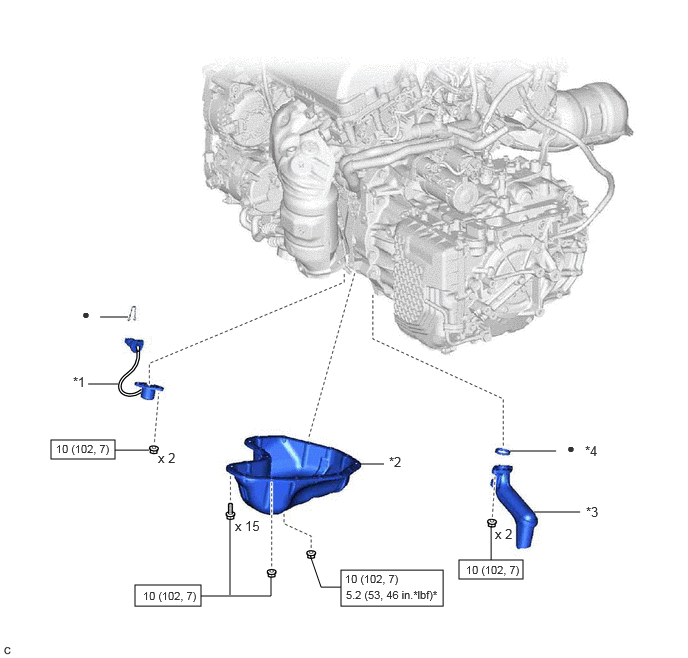

Fig 2: Oil Pan And Oil Level Sensor Replacement Components With Torque Specifications [12/2019 - 10/2022] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | ENGINE OIL LEVEL SENSOR | *2 | NO. 2 OIL PAN SUB-ASSEMBLY |
| *3 | OIL STRAINER SUB-ASSEMBLY | *4 | OIL STRAINER GASKET |
|
N.m (kgf/cm, ft.lbf): Specified torque | * | For use with SST |
| • | Non-reusable part | - | - |
