Components [12/2019 - 10/2022]

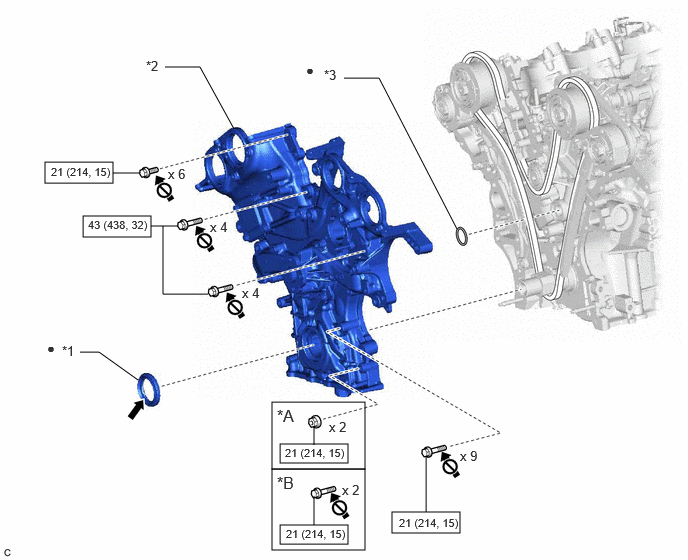

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Stud Bolt | *B | w/o Stud Bolt |
| *1 | TIMING CHAIN CASE OIL SEAL | *2 | TIMING CHAIN COVER ASSEMBLY |
| *3 | OIL PUMP GASKET | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
|
MP Grease | |
Do not apply lubricants to the threaded parts |

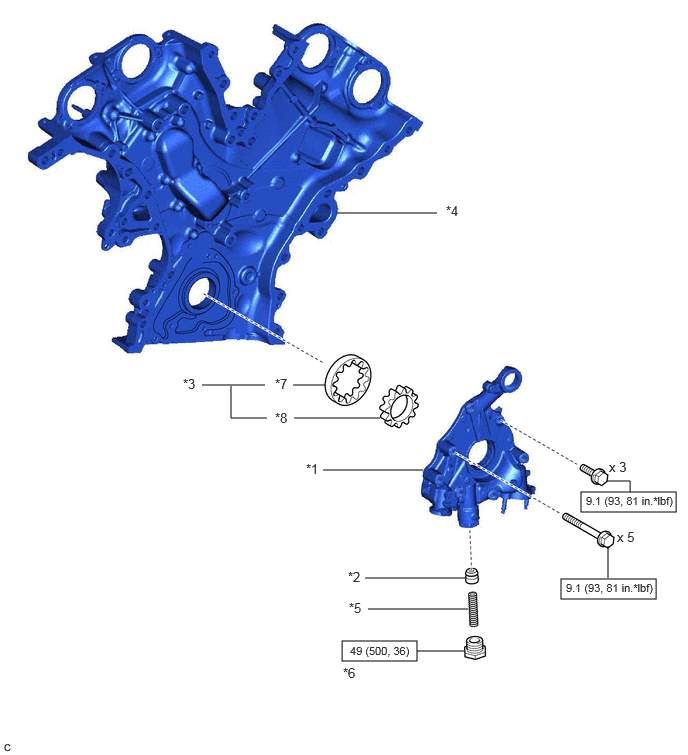

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | OIL PUMP COVER | *2 | OIL PUMP RELIEF VALVE |
| *3 | OIL PUMP ROTOR SET | *4 | TIMING CHAIN COVER ASSEMBLY |
| *5 | OIL PUMP RELIEF VALVE SPRING | *6 | OIL PUMP RELIEF VALVE PLUG |
| *7 | DRIVEN ROTOR | *8 | DRIVE ROTOR |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
