Removal [12/2019 - 10/2022]: Procedure

Refer to REMOVAL [12/2019 - 10/2022]

Refer to PROCEDURE - Step 4

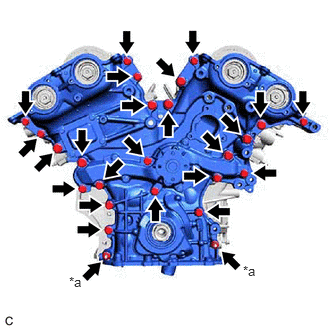

1. w/ Stud Bolt:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Nut

   1. Remove the 23 bolts and 2 nuts shown in the illustration.

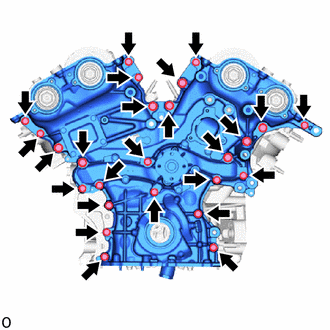

2. w/o Stud Bolt:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Remove the 25 bolts shown in the illustration.

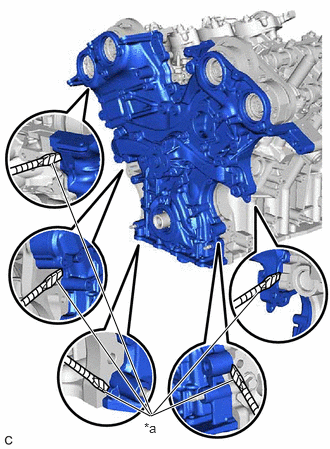

3. Remove the timing chain cover assembly by prying between the timing chain cover assembly and cylinder head sub-assembly or cylinder block sub-assembly with a screwdriver with its tip wrapped with protective tape.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

   NOTE:

   Be careful not to damage the contact surfaces of the cylinder head sub-assembly, cylinder block sub-assembly and timing chain cover assembly.

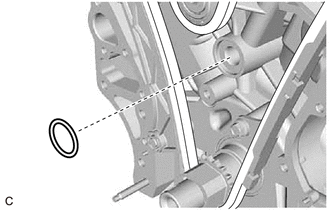

4. Remove the oil pump gasket from the cylinder block sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
