Reassembly [12/2019 - 10/2022]: Procedure

INSTALL OIL PUMP ROTOR SET

Coat the drive rotor and driven rotor with engine oil and place them into the timing chain cover assembly with the rotor marks facing up. Check that the rotors rotate smoothly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Rotor Mark

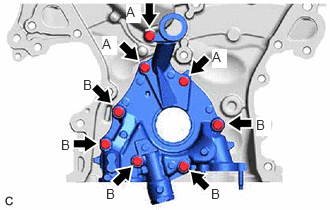

INSTALL OIL PUMP COVER

Install the oil pump cover to the timing chain cover assembly with the 8 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 9.1 N.m (93 kgf/cm, 81 in.lbf)

Bolt Length

Item	Length
Bolt (A)	22 mm (0.866 in.)
Bolt (B)	40 mm (1.57 in.)

INSTALL OIL PUMP RELIEF VALVE

Coat the oil pump relief valve with engine oil.
Insert the oil pump relief valve and oil pump relief valve spring into the valve hole.

Using a 27 mm socket wrench, install the oil pump relief valve plug to the oil pump cover.

Torque: 49 N.m (500 kgf/cm, 36 ft.lbf)
