Components [12/2019 - 10/2022]

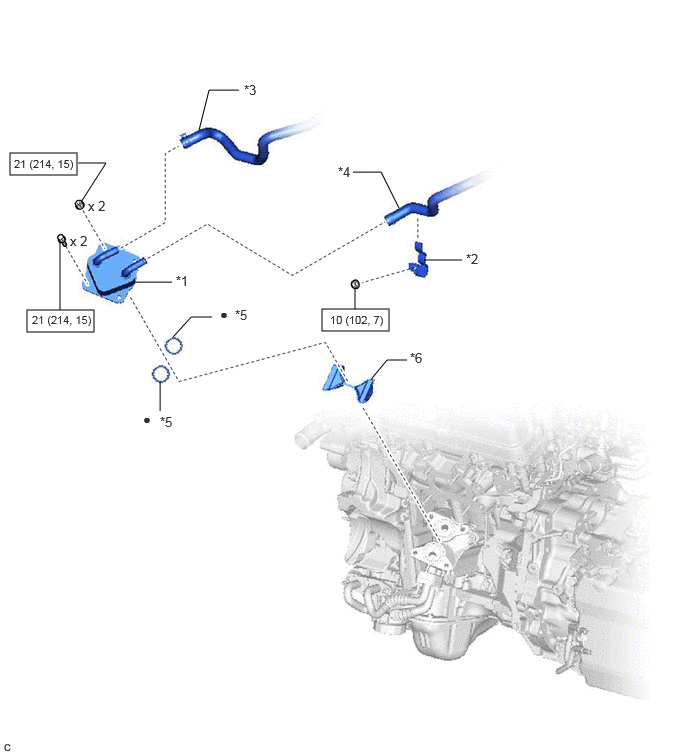

Fig 1: Engine Oil Cooler Replacement Components With Torque Specifications [12/2019 - 10/2022]
GTY627542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OIL COOLER ASSEMBLY *2 HOSE CLAMP
*3 NO. 4 WATER BY-PASS HOSE *4 NO. 5 WATER BY-PASS HOSE
*5 O-RING *6 NO. 1 CYLINDER BLOCK INSULATOR
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
