Removal [12/2019 - 10/2022]: Procedure

  1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    Refer to PROCEDURE - Step 1

  2. REMOVE RADIATOR ASSEMBLY

    Refer to REMOVAL [12/2019 - 09/2020] , or refer to REMOVAL [09/2020 - 10/2022]

  3. REMOVE V-RIBBED BELT

    Refer to REMOVAL [12/2019 - 10/2022]

  4. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY
    1. Remove the bolt and disconnect the discharge hose sub-assembly from the compressor and magnetic clutch.

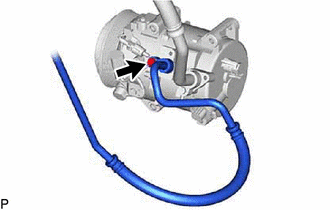

      GTY916149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the discharge hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  5. DISCONNECT SUCTION HOSE SUB-ASSEMBLY
    1. Remove the bolt and disconnect the suction hose sub-assembly from the compressor and magnetic clutch.

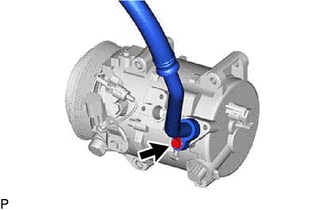

      GTY916148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the suction hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  6. REMOVE COMPRESSOR AND MAGNETIC CLUTCH
    1. Disconnect each connector.

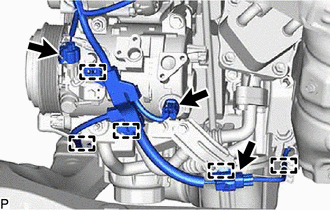

      GTY916146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage each clamp.
    3. Remove the 2 bolts and 2 nuts, and separate the bracket.

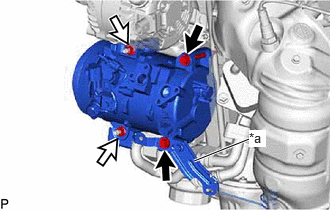

      GTY922620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bracket
      Bolt
      Nut
    4. Using an E8 "TORX" socket wrench, remove the 2 stud bolts and compressor and magnetic clutch.

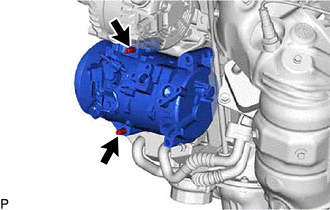

      GTY943369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
