Removal [12/2019 - 09/2020]: Procedure

  1. REMOVE NO. 2 FORWARD RECOGNITION COVER
    1. Pull the No. 2 forward recognition cover in the direction indicated by the arrow (1) shown in the illustration to disengage the 2 claws.
      NOTE:

      If these claws are disengaged separately, they may break. Insert a molding remover between them and pull it down to disengage the claws simultaneously.

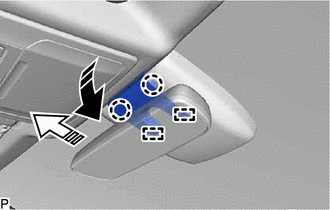

      GTY925110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull the No. 2 forward recognition cover in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 guides and remove the No. 2 forward recognition cover.
  2. REMOVE NO. 1 FORWARD RECOGNITION COVER
    1. Disengage the 2 clips and 2 guides to remove the No. 1 forward recognition cover as shown in the illustration.
      NOTE:

      To avoid damaging the guides, always slide the No. 1 forward recognition cover parallel to the windshield glass.

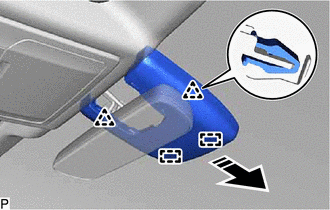

      GTY944272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE FORWARD RECOGNITION LATCH
    1. Disengage the 2 claws in the direction indicated by the arrow (1) shown in the illustration.

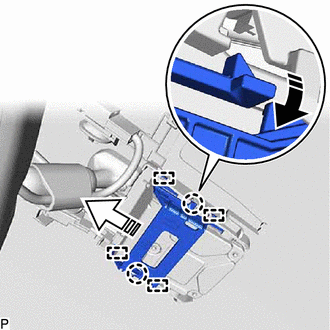

      GTY849338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Disengage the 4 guides in the direction indicated by the arrow (2) shown in the illustration to remove the forward recognition latch.
  4. REMOVE FORWARD RECOGNITION CAMERA
    NOTE:

    If the forward recognition camera has been struck or dropped, replace it with a new one.

    1. Disconnect the connector.

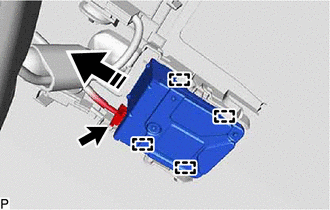

      GTY844637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      NOTE:

      Do not pull the harness forcibly when disconnecting the connector.

    2. Disengage the 4 guides and remove the forward recognition camera as shown in the illustration.
      NOTE:
      • Do not touch the camera lens.
      • If the forward recognition camera bracket is deformed or damaged, replace it together with the windshield glass.
