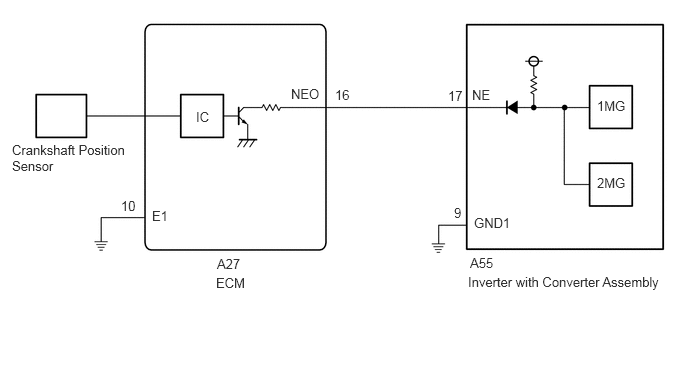

DTC P0335-00: Crankshaft Position Sensor "A"; DTC P0335-31: Crankshaft Position Sensor "A" No Signal [12/2019 - 11/2023]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY842844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
