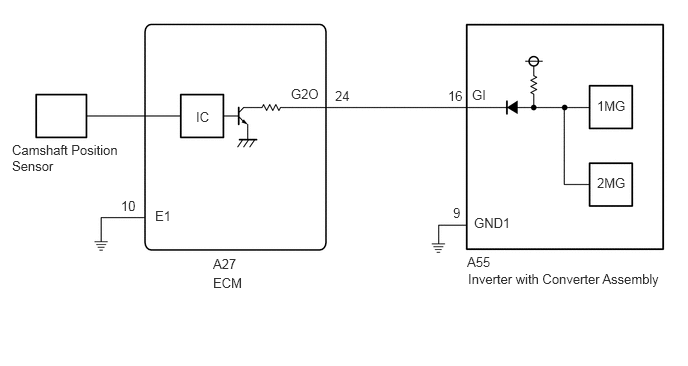

DTC P0340-00: Camshaft Position Sensor "A" Circuit Bank 1 or Single Sensor; DTC P0340-31: Camshaft Position Sensor "A" Circuit Bank 1 or Single Sensor No Signal [12/2019 - 11/2023]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY927210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
