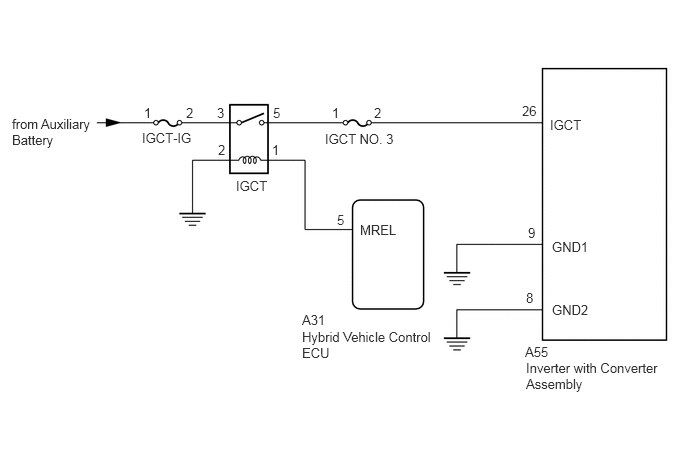

DTC P0A11-12: DC/DC Converter Enable Circuit Short to Battery; DTC P0A11-14: DC/DC Converter Enable Circuit Short to Ground or Open [12/2019 - 11/2023]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY870291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
