DTC P0A81-11: Hybrid/EV Battery Cooling Fan 1 Circuit Short to Ground; DTC P0A81-4B: Hybrid/EV Battery Cooling Fan 1 Over Temperature; DTC P0A96-11: Hybrid/EV Battery Cooling Fan 2 Circuit Short to Ground; DTC P0A96-4B: Hybrid/EV Battery Cooling Fan 2 Over Temperature [12/2019 - 11/2023]: Description
WARNING: This page is about a different variant/trim than selected.

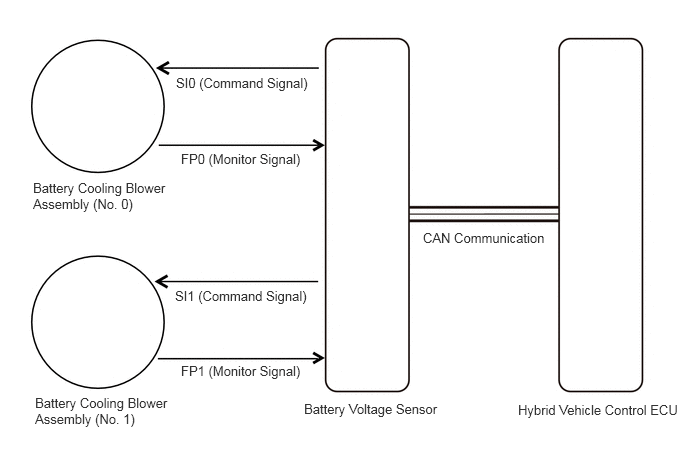

The battery cooling blower assembly speed is controlled by the battery voltage sensor. Power is supplied to the battery cooling blower assembly when the MREL terminal of the hybrid vehicle control ECU turns on the IGCT relay. The battery voltage sensor sends command signals (SI0 and SI1) to the battery cooling blower assembly to adjust the fan speed to an appropriate speed for the HV battery temperature. The frequency (FP0 and FP1) of the battery cooling blower assembly is sent to the hybrid vehicle control ECU via the battery voltage sensor as a monitor signal using CAN communication.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Warning Indicate |
|---|---|---|---|---|---|
| P0A81-11 | Hybrid/EV Battery Cooling Fan 1 Circuit Short to Ground | Both of the following conditions are met:
(2 trip detection logic) |
|
Comes on | Master Warning: Comes on |
| P0A81-4B | Hybrid/EV Battery Cooling Fan 1 Over Temperature | Both of the following conditions are met:
(1 trip detection logic) |
|
Comes on | Master Warning: Comes on |
| P0A96-11 | Hybrid/EV Battery Cooling Fan 2 Circuit Short to Ground | Both of the following conditions are met:
(2 trip detection logic) |
|
Comes on | Master Warning: Comes on |
| P0A96-4B | Hybrid/EV Battery Cooling Fan 2 Over Temperature | Both of the following conditions are met:
(1 trip detection logic) |
|
Comes on | Master Warning: Comes on |
RELATED DATA LIST
| DTC No. | Data List |
|---|---|
| P0A81-11 |
|
| P0A81-4B | |
| P0A96-11 |
|
| P0A96-4B |
The following items can be helpful when performing repairs:
Data List
- Hybrid Battery Temperature 1 to 6
- BATT Voltage
HINT:
- "Hybrid Battery Cooling Fan 1 Frequency" is detected when the battery cooling blower assembly (No. 0) is operating and its value changes in proportion to the battery cooling blower assembly (No. 0) speed.
- "Hybrid/EV Battery Cooling Fan 2 Frequency" is detected when the battery cooling blower assembly (No. 1) is operating and its value changes in proportion to the battery cooling blower assembly (No. 1) speed.
