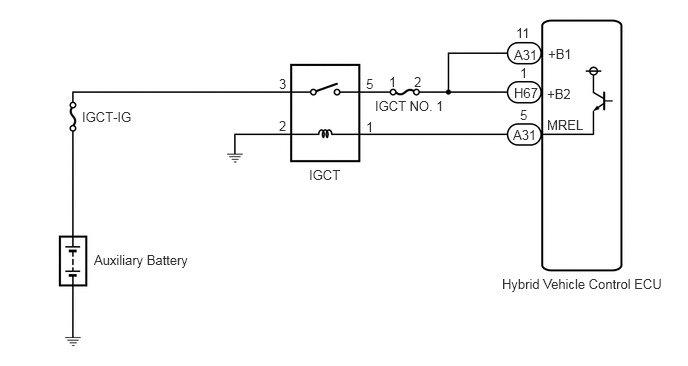

DTC P0688-1F: ECM/PCM Power Relay Sense Circuit Intermittent [12/2019 - 11/2023]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY917904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
