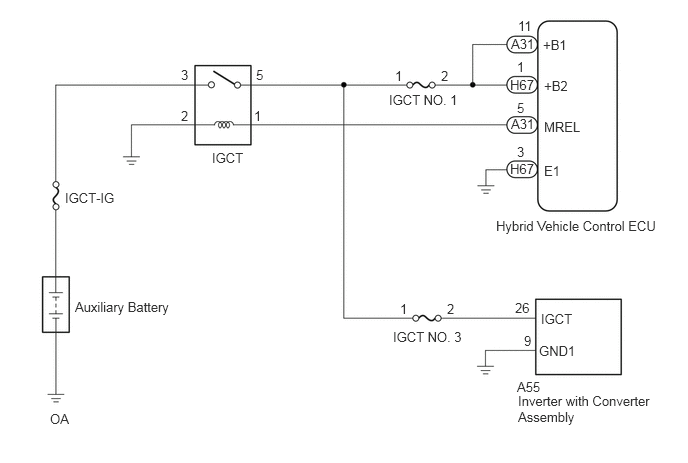

DTC P0A1B-94: Drive Motor "A" Control Module Unexpected Operation [12/2019 - 11/2023]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY867937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
