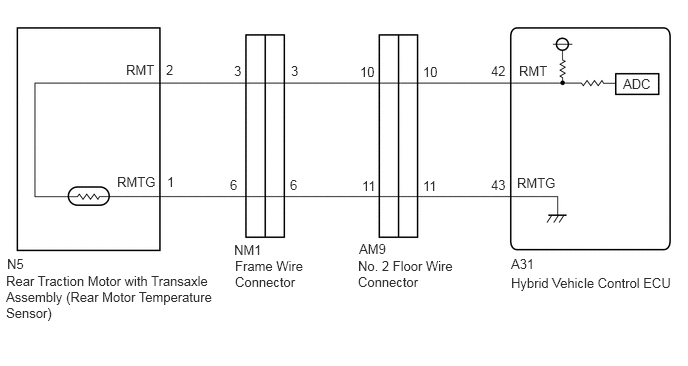

DTC P0A30-11: Drive Motor "B" Temperature Sensor Circuit Short to Ground; DTC P0A30-15: Drive Motor "B" Temperature Sensor Circuit Short to Battery or Open [12/2019 - 11/2023]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY908884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
