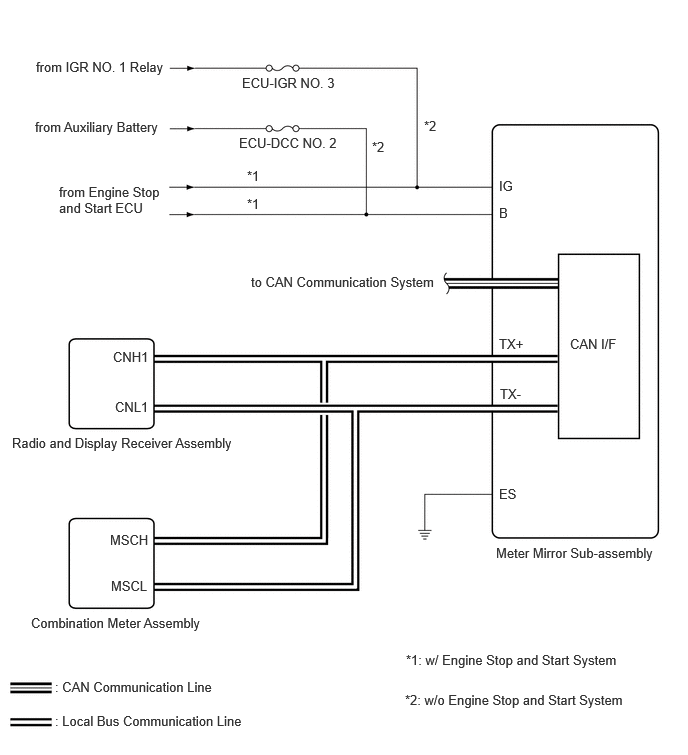

System Diagram [11/2023 - ]
HINT:
Refer to System Diagram of CAN Communication System.
For HV Model: Refer to SYSTEM DIAGRAM [11/2023 - 11/2024] , or refer to SYSTEM DIAGRAM [11/2024 - ]
For Gasoline Model: Refer to SYSTEM DIAGRAM [11/2023 - ]
HINT:
Refer to System Diagram of CAN Communication System.
For HV Model: Refer to SYSTEM DIAGRAM [11/2023 - 11/2024] , or refer to SYSTEM DIAGRAM [11/2024 - ]
For Gasoline Model: Refer to SYSTEM DIAGRAM [11/2023 - ]
