DTC B1321-87: Lost Communication with EMV Missing Message [10/2022 - 11/2023]: Wiring Diagram

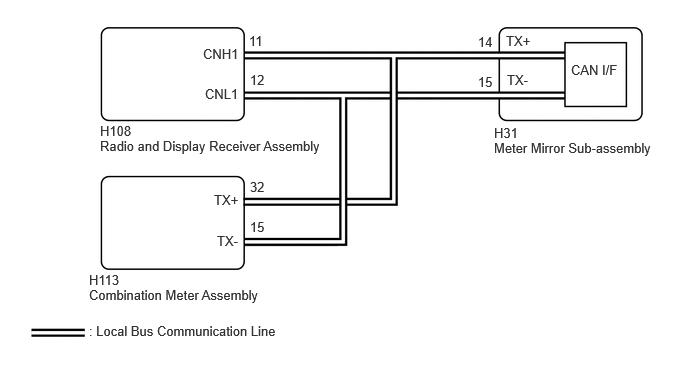

  1. Fig 1: DTC B1321-87: Lost Communication With EMV Missing Message [10/2022 - 11/2023]
    GTY1111164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
