DTC B1321-87: Lost Communication with EMV Missing Message [11/2023 - ]: Wiring Diagram

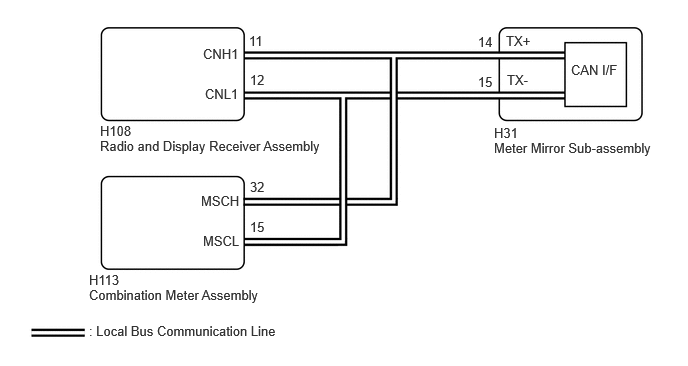

  1. Fig 1: DTC B1321-87: Lost Communication With EMV Missing Message [11/2023 - ]
    GTY1179754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
