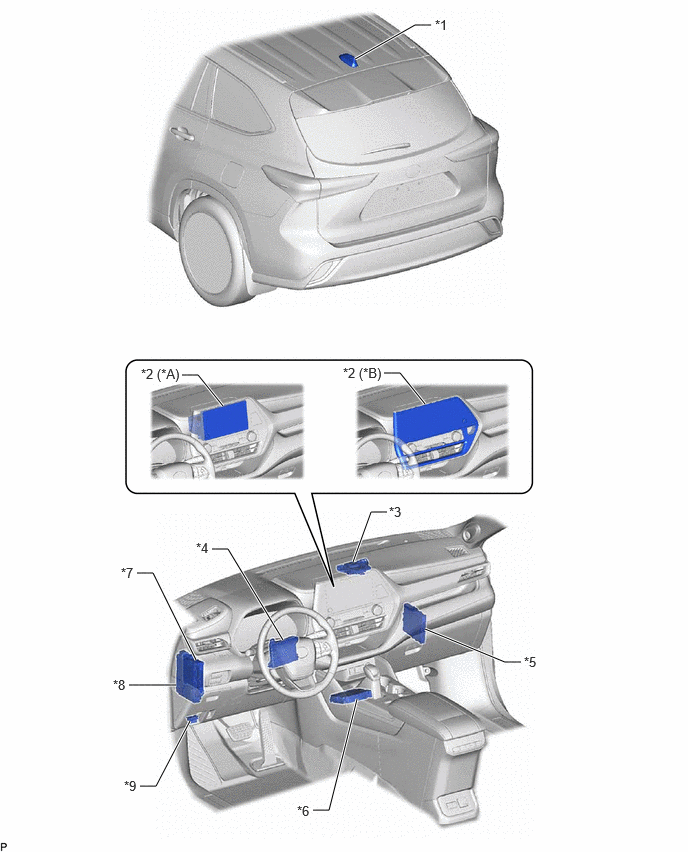

Parts Location [11/2024 - ]: Illustration
| *A | for 8 Inch Display | *B | for 12.3 Inch Display |
| *1 | ROOF ANTENNA ASSEMBLY - Telephone Main |
*2 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *3 | NAVIGATION ANTENNA ASSEMBLY - Telephone Sub - GPS |
*4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *5 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *6 | DCM (TELEMATICS TRANSCEIVER) |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | POWER DISTRIBUTION BOX ASSEMBLY - DCM FUSE - ECU-IGR NO. 3 FUSE |
| *9 | DLC3 | - | - |
