Terminals Of Ecu [10/2021 - 10/2022]

HINT:

Check from the rear of the connector while it is connected to the components.

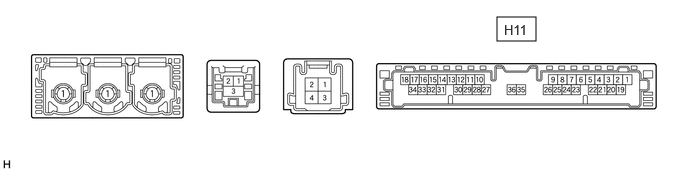

1. DCM (TELEMATICS TRANSCEIVER)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
   H11-1 (+B) - H11-20 (E)	Power source (+B)	Ignition switch off*1 Always*2	11 to 14 V*3 10.5 to 16 V*4
   H11-20 (E) - Body ground	Ground	Always	Below 1 Ω
   H11-19 (IG2) - H11-20 (E)	Power source (IG)	Ignition switch ON	11 to 14 V*3 10.5 to 16 V*4
   		Ignition switch off	Below 1 V
   H11-25 (CANP)	CAN communication signal	-	-
   H11-26 (CANN)	CAN communication signal	-	-

   *1: for HV Model

   *2: for Gasoline Model

   *3: w/o Stop and Start System

   *4: w/ Stop and Start System

2. CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

   for HV Model: Refer to TERMINALS OF ECU [10/2021 - 11/2023]

   for Gasoline Model: Refer to TERMINALS OF ECU [10/2021 - 10/2022]
