Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Drivers Assistance Systems - ADAS >> Dynamic Radar Cruise Control System (Except HV) - Diagnostic Codes & Circuit Tests >> DYNAMIC RADAR CRUISE CONTROL SYSTEM (for Gasoline Model) >> Distance Control Switch Circuit [12/2019 - 09/2020] >> Wiring Diagram

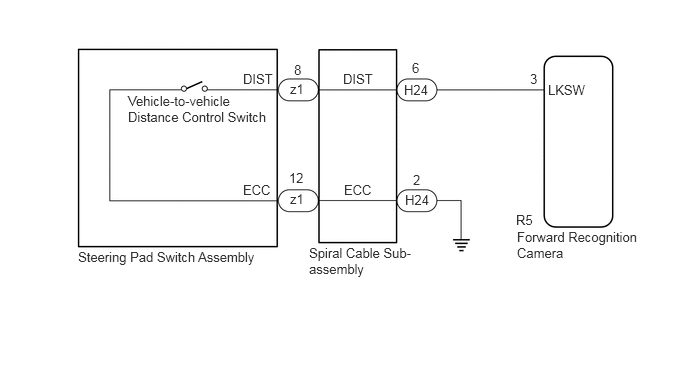

Distance Control Switch Circuit [12/2019 - 09/2020]: Wiring Diagram

GTY840799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
